plumbing

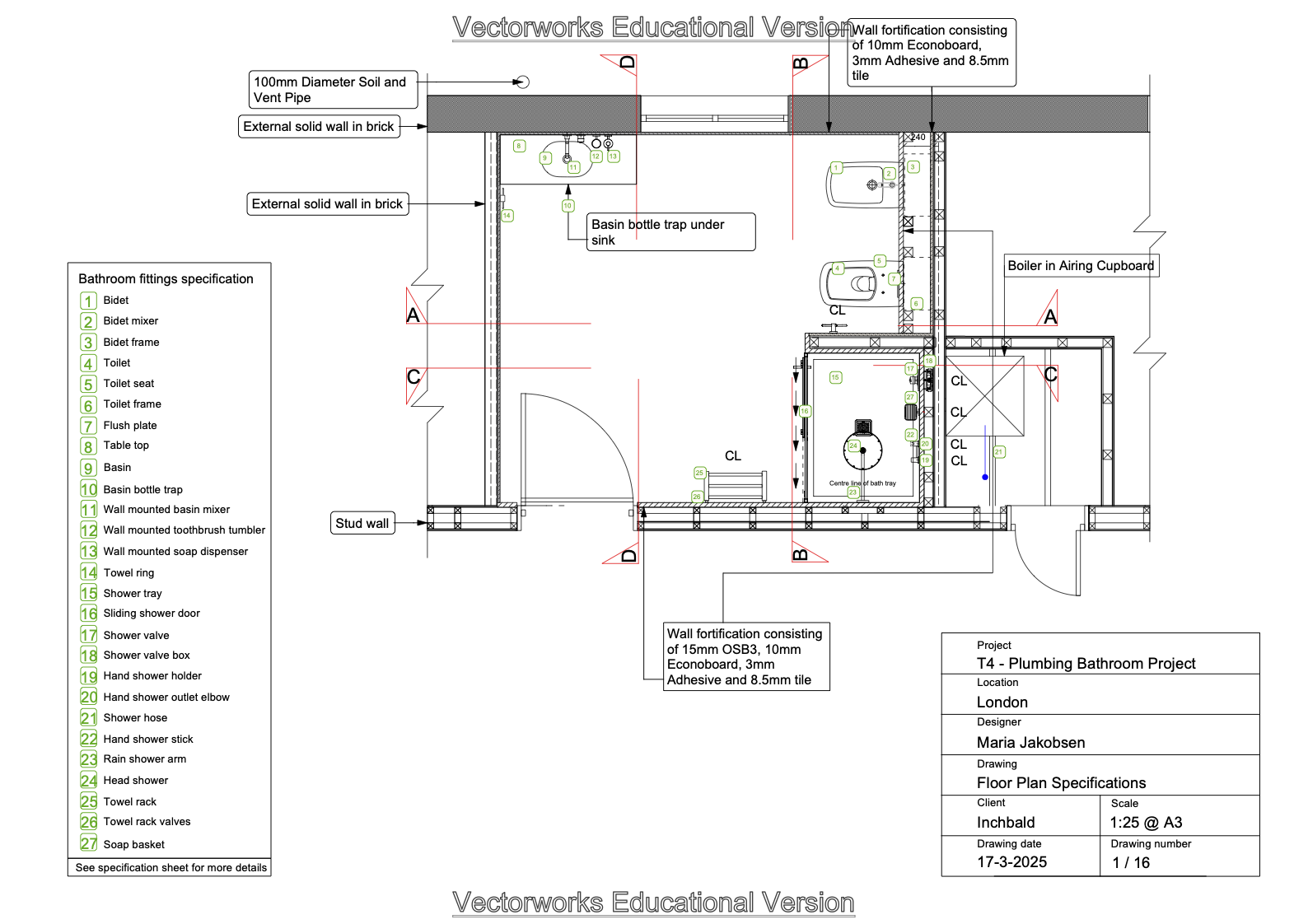

01 Floor Plan Specs.png

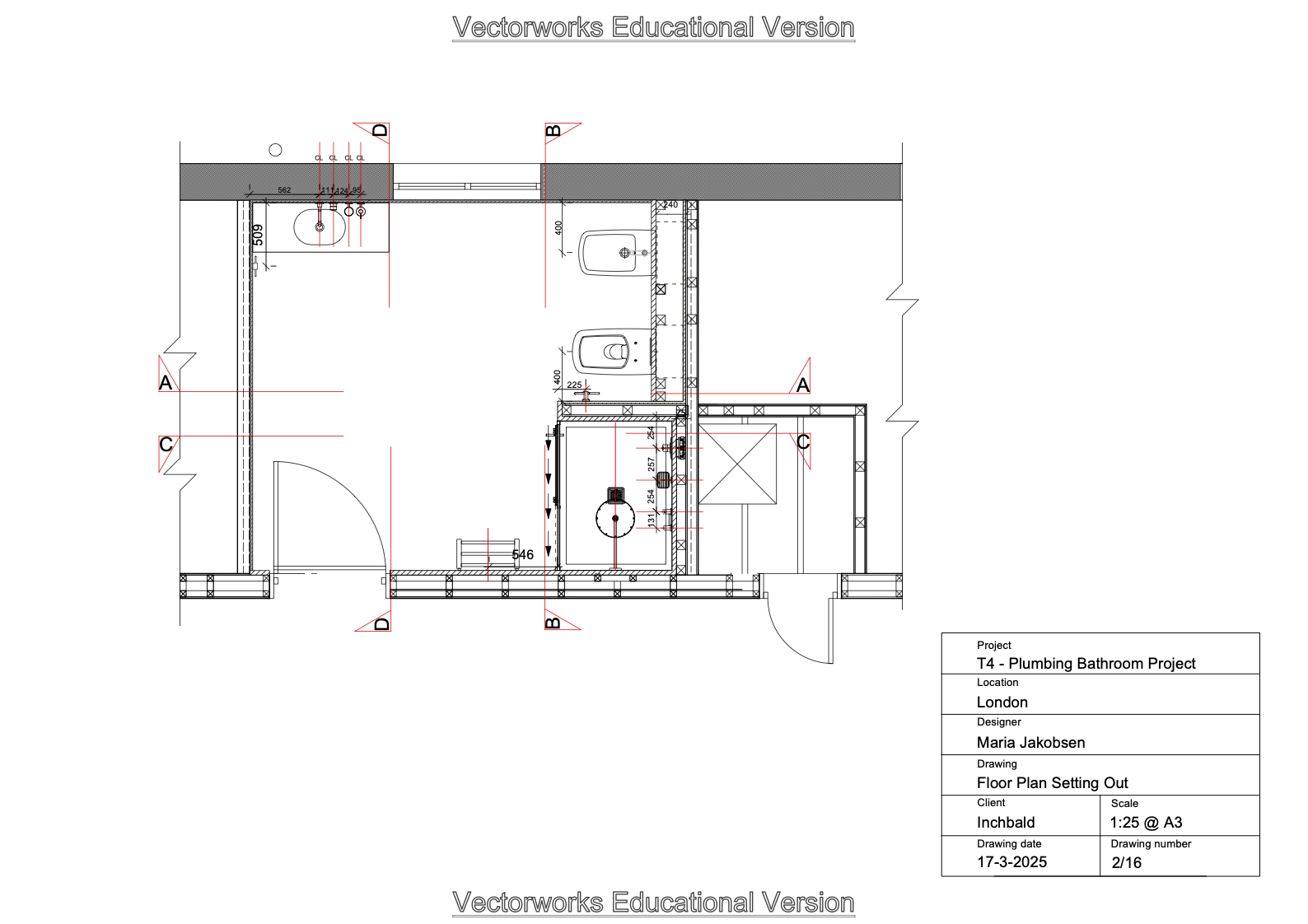

02 - Floor Plan Setting Out.png

03 - Sectional Elevation AA Setting Out.png

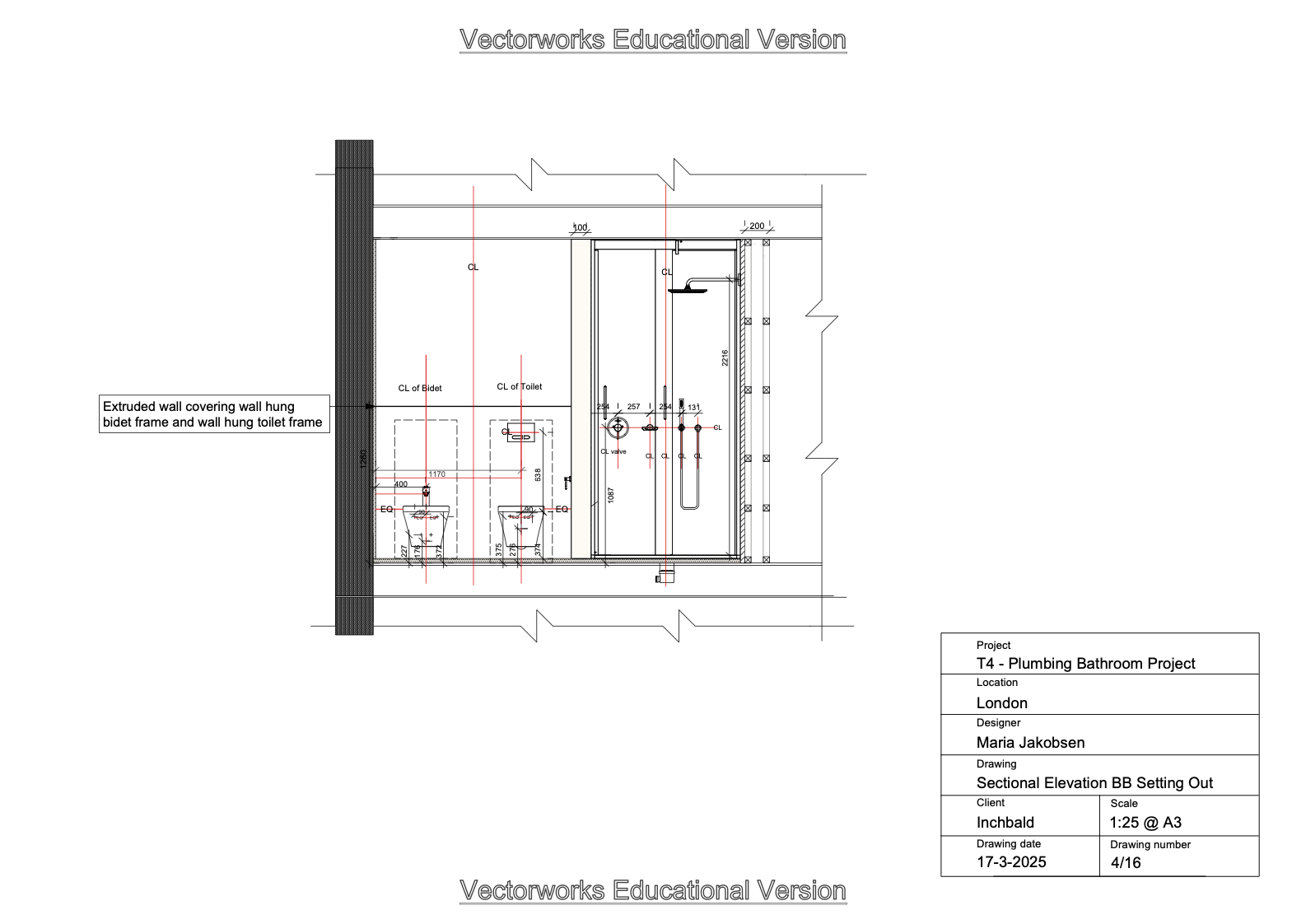

04 - Sectional Elevation BB Setting Out.png

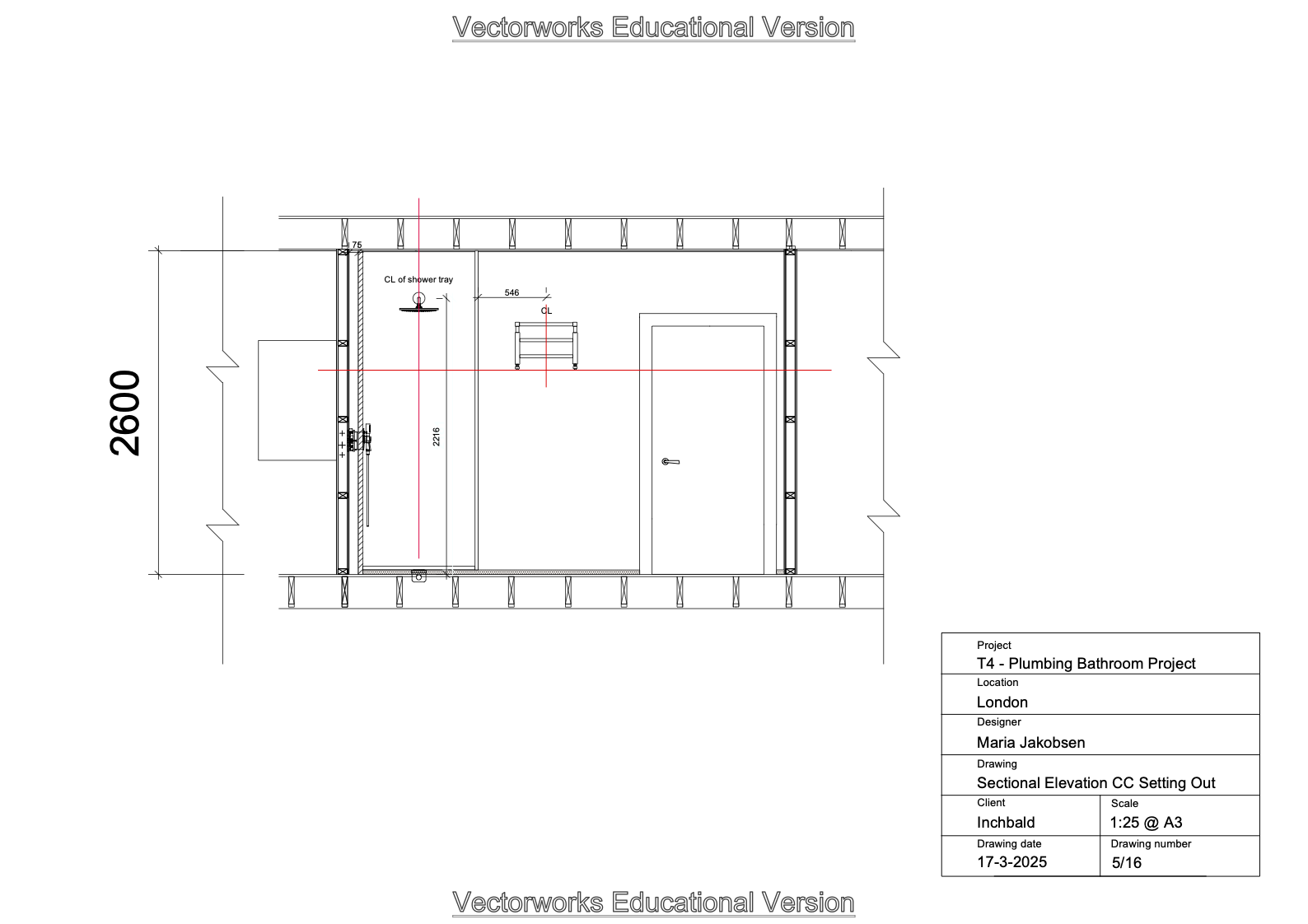

05 - Sectional Elevation CC Setting Out.png

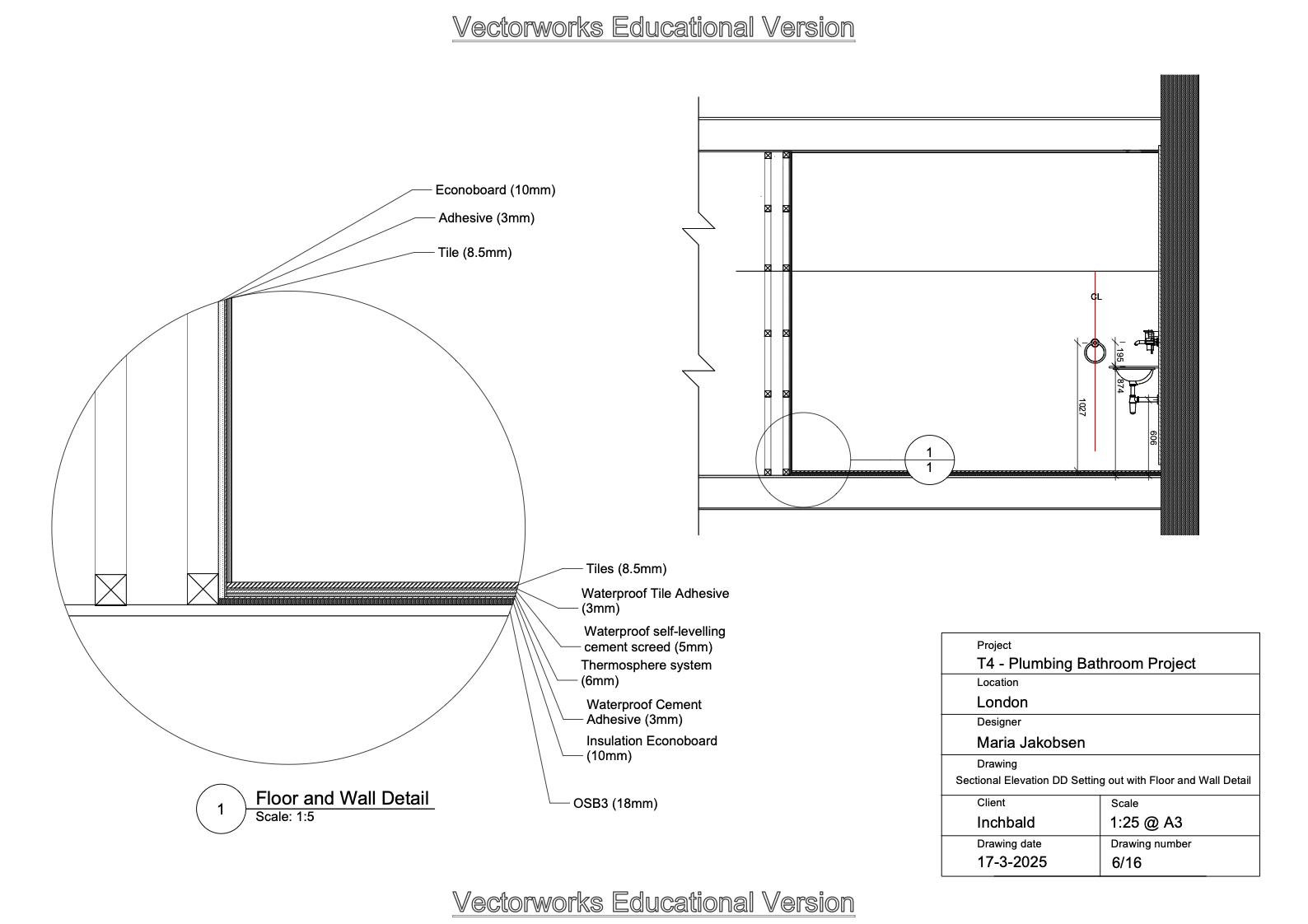

06 - Sectional Elevatin DD Setting out and Wall Detail.png

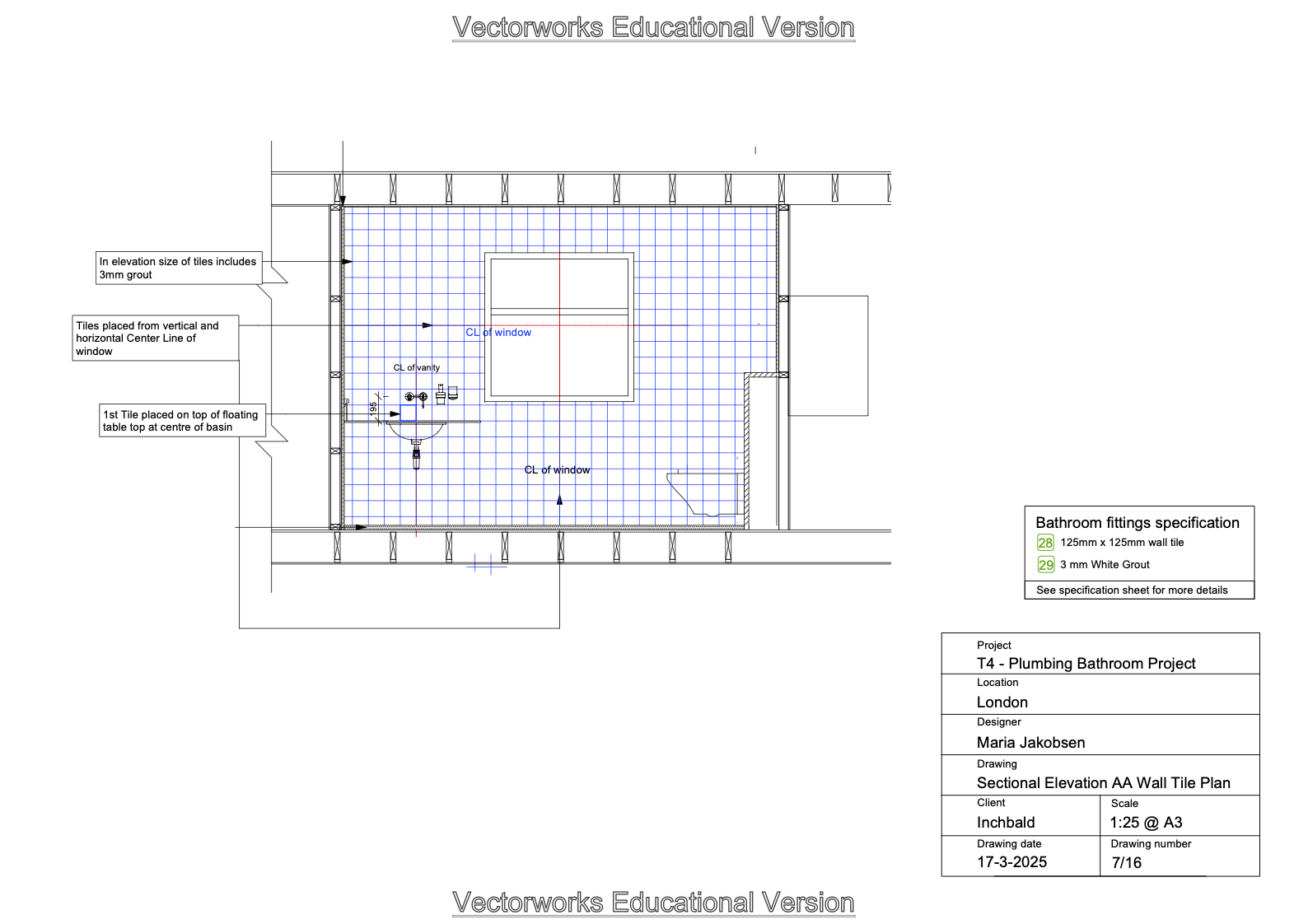

07 - Sectional Elevation AA Tile.png

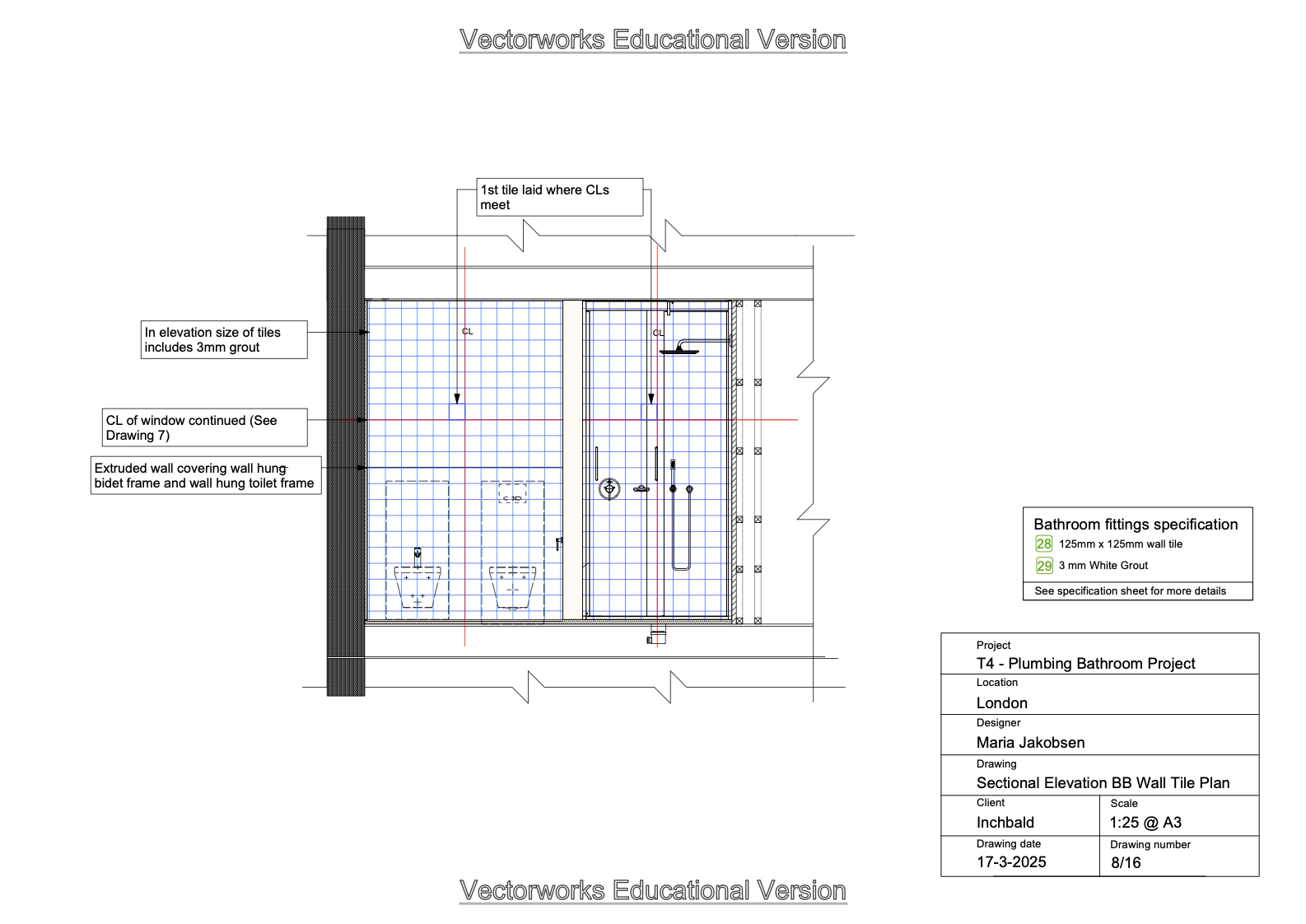

08 - SEBB Tile.png

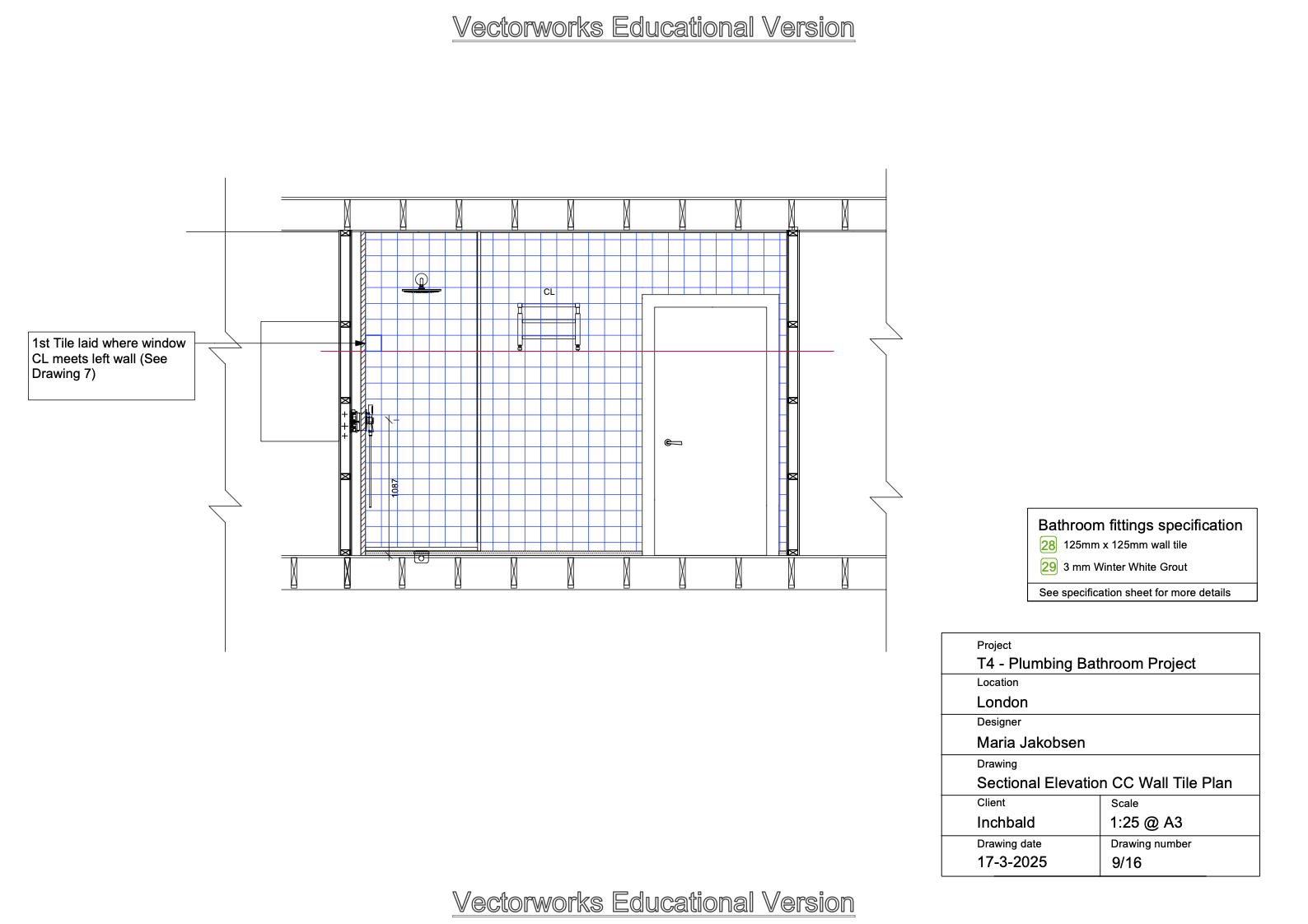

09 - SECC Tile.png

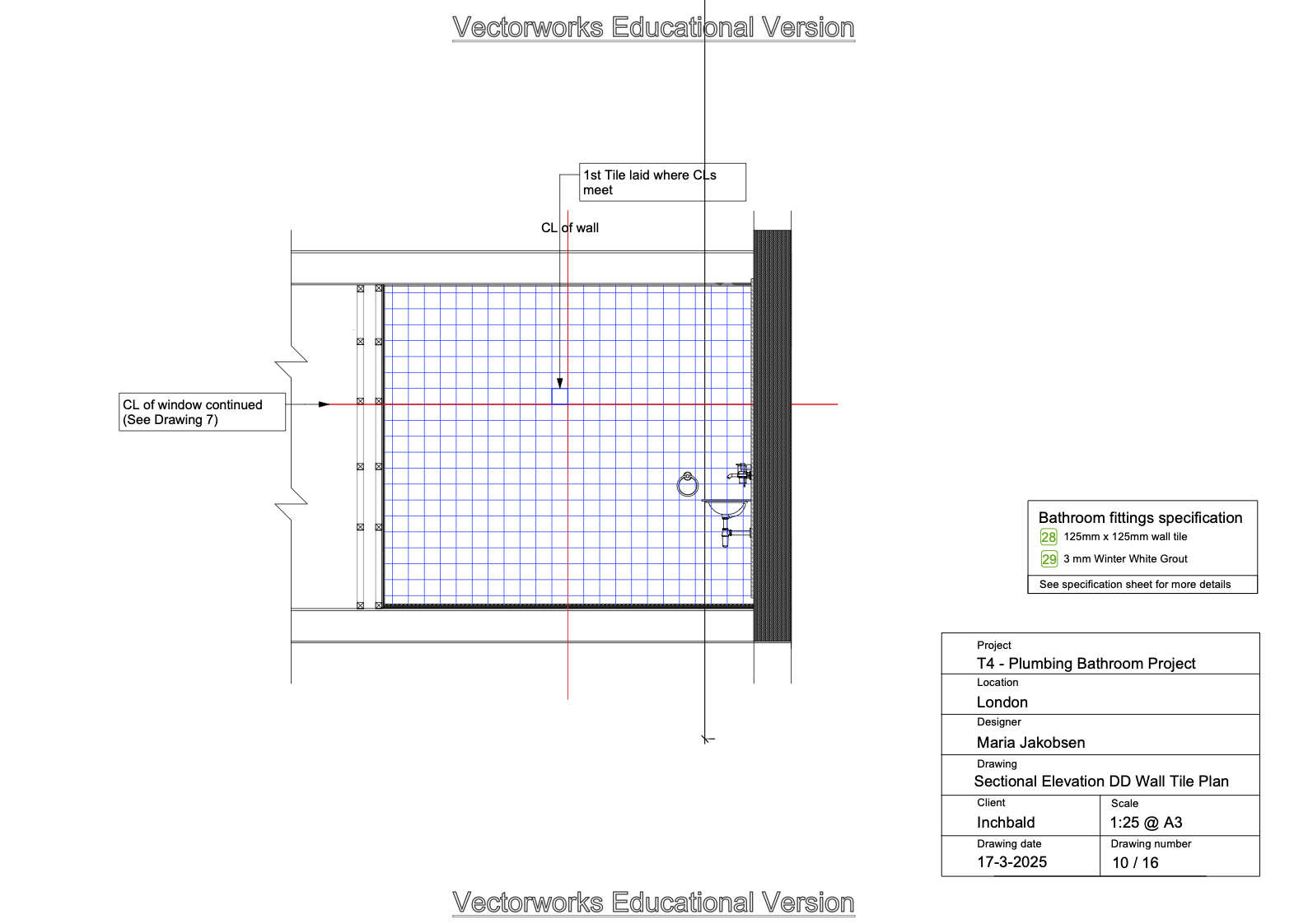

10 - SEDD Tile.png

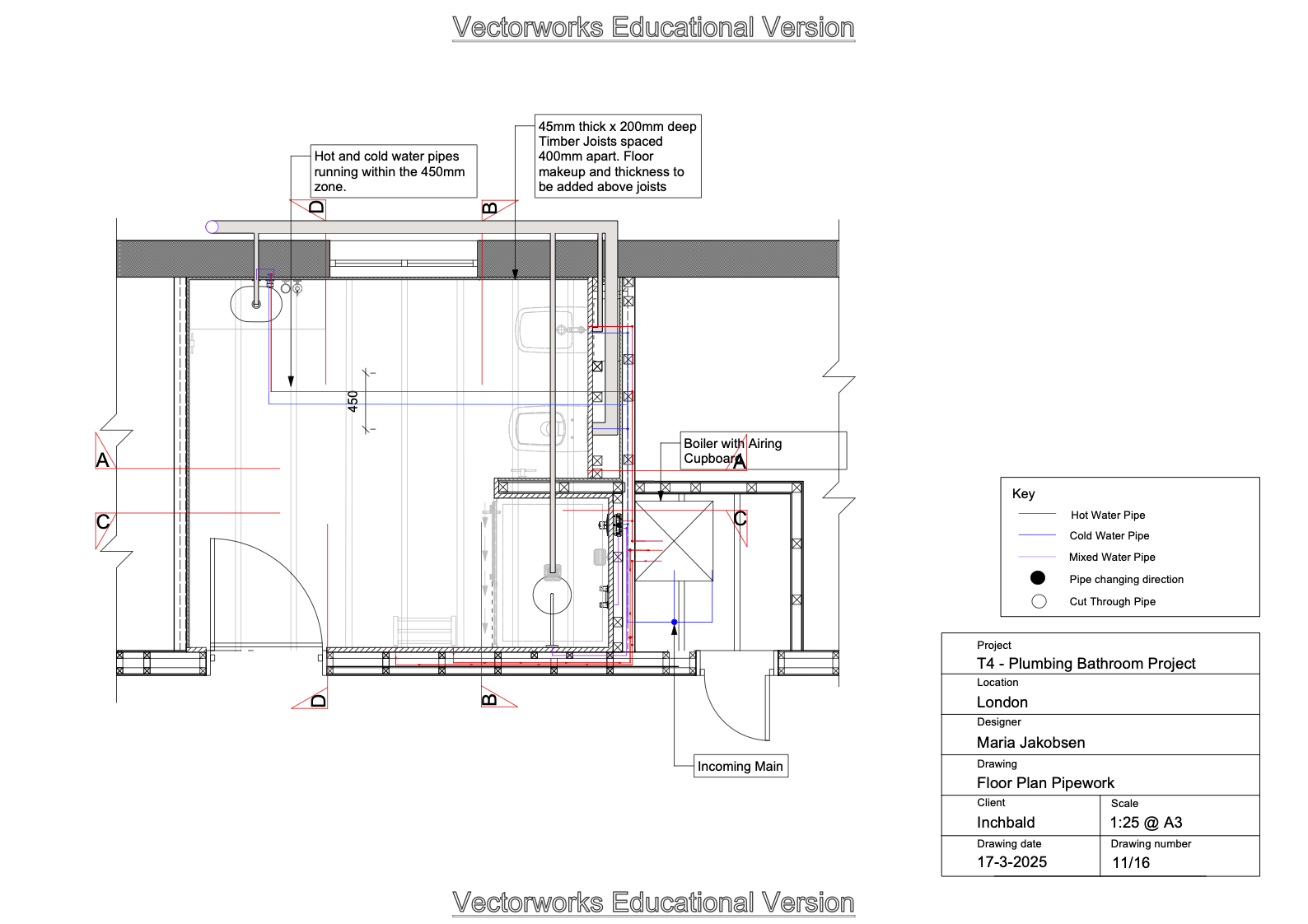

11 - Plan Pipe.png

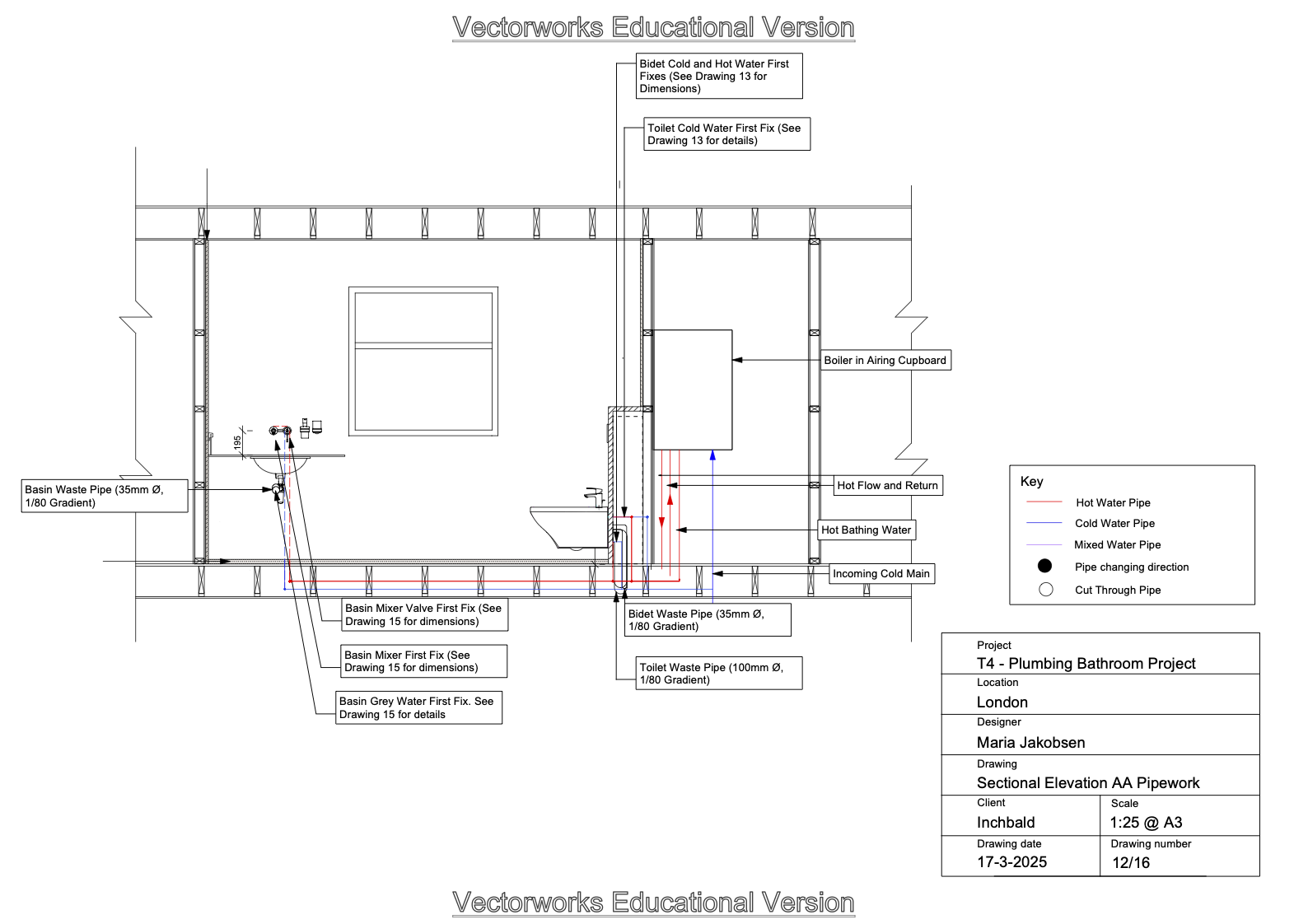

12 - SEAA Pipe.png

13 - SEBB Pipe.png

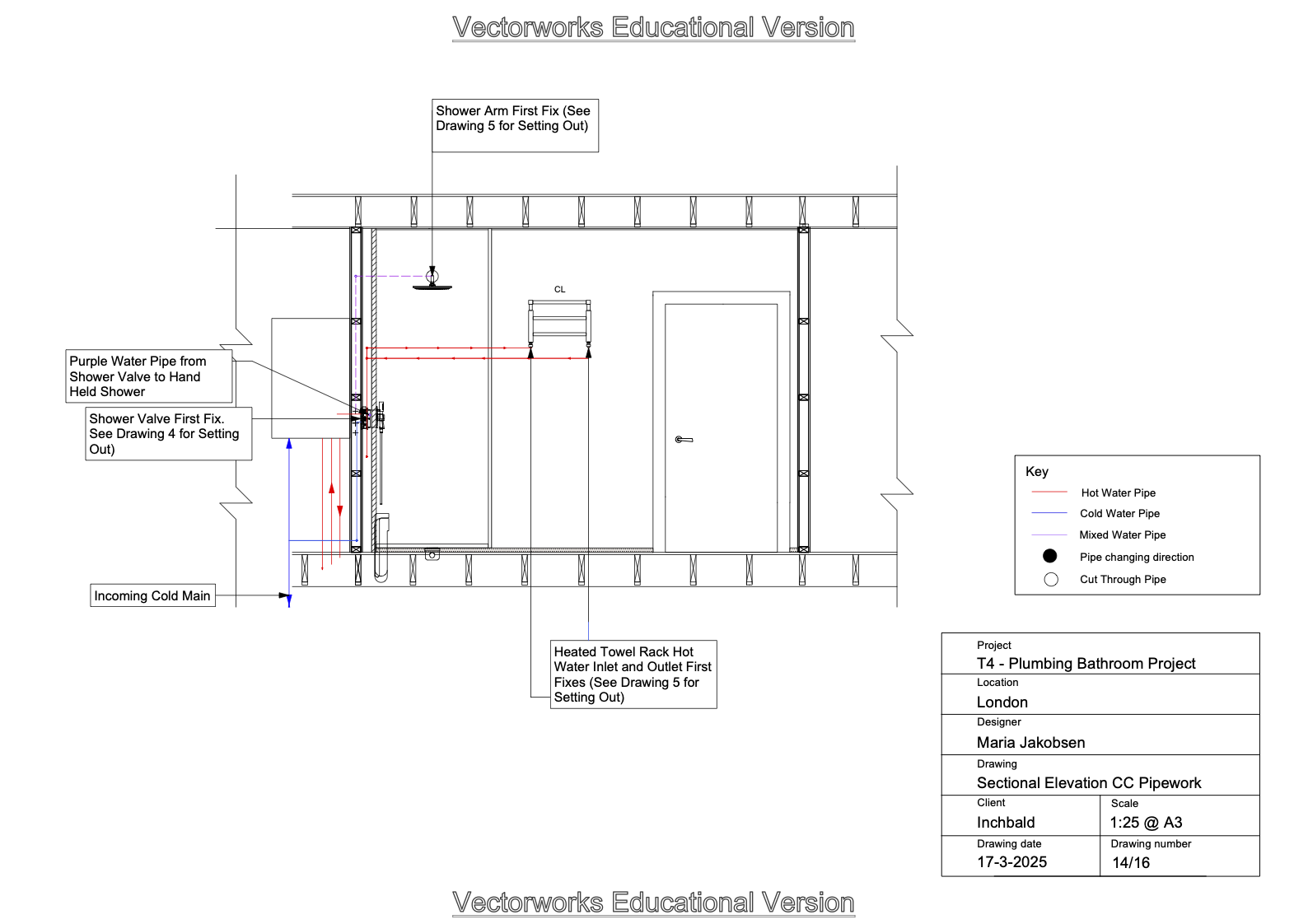

14 - SECC Pipe.png

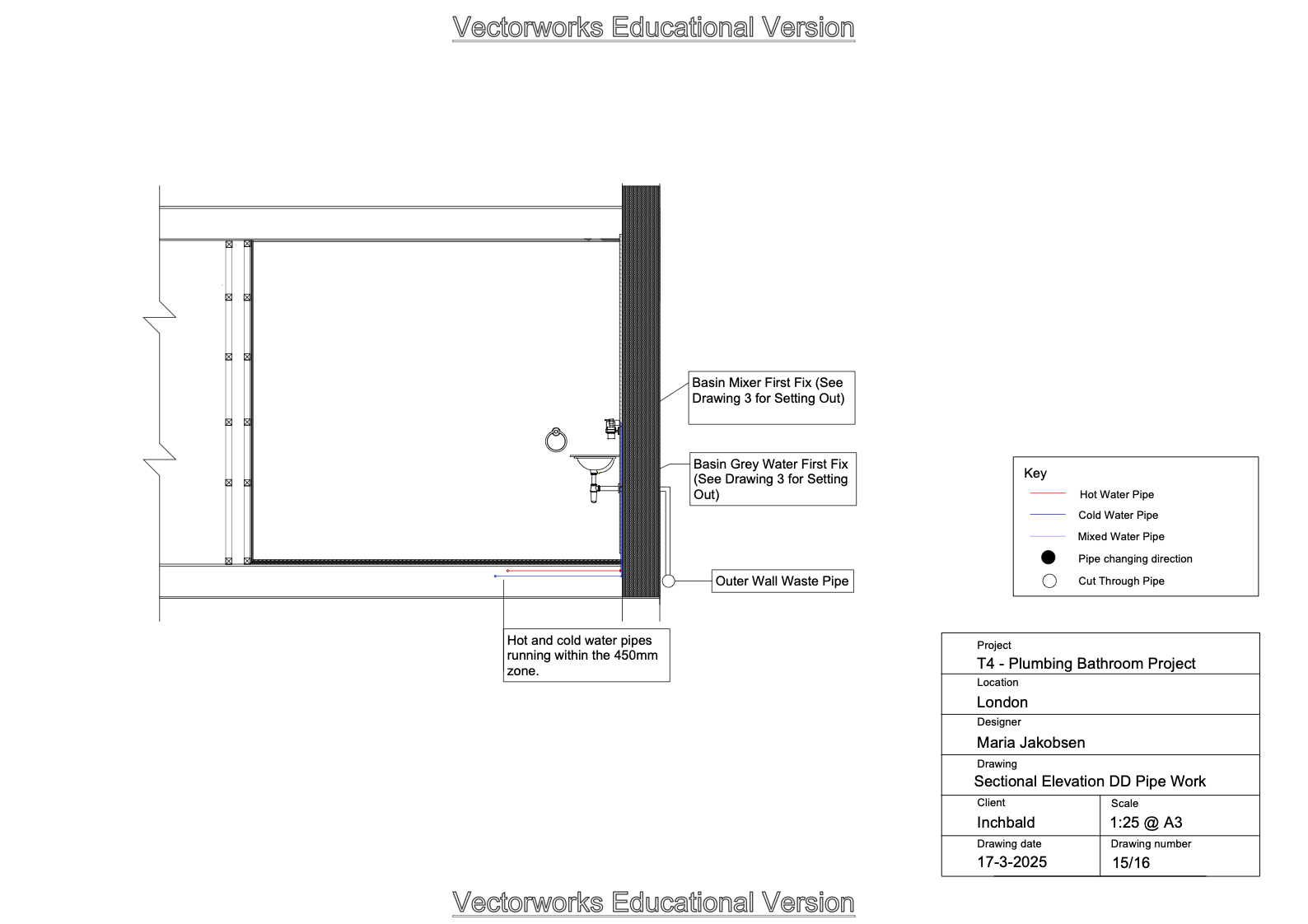

15 SEDD Pipe.png

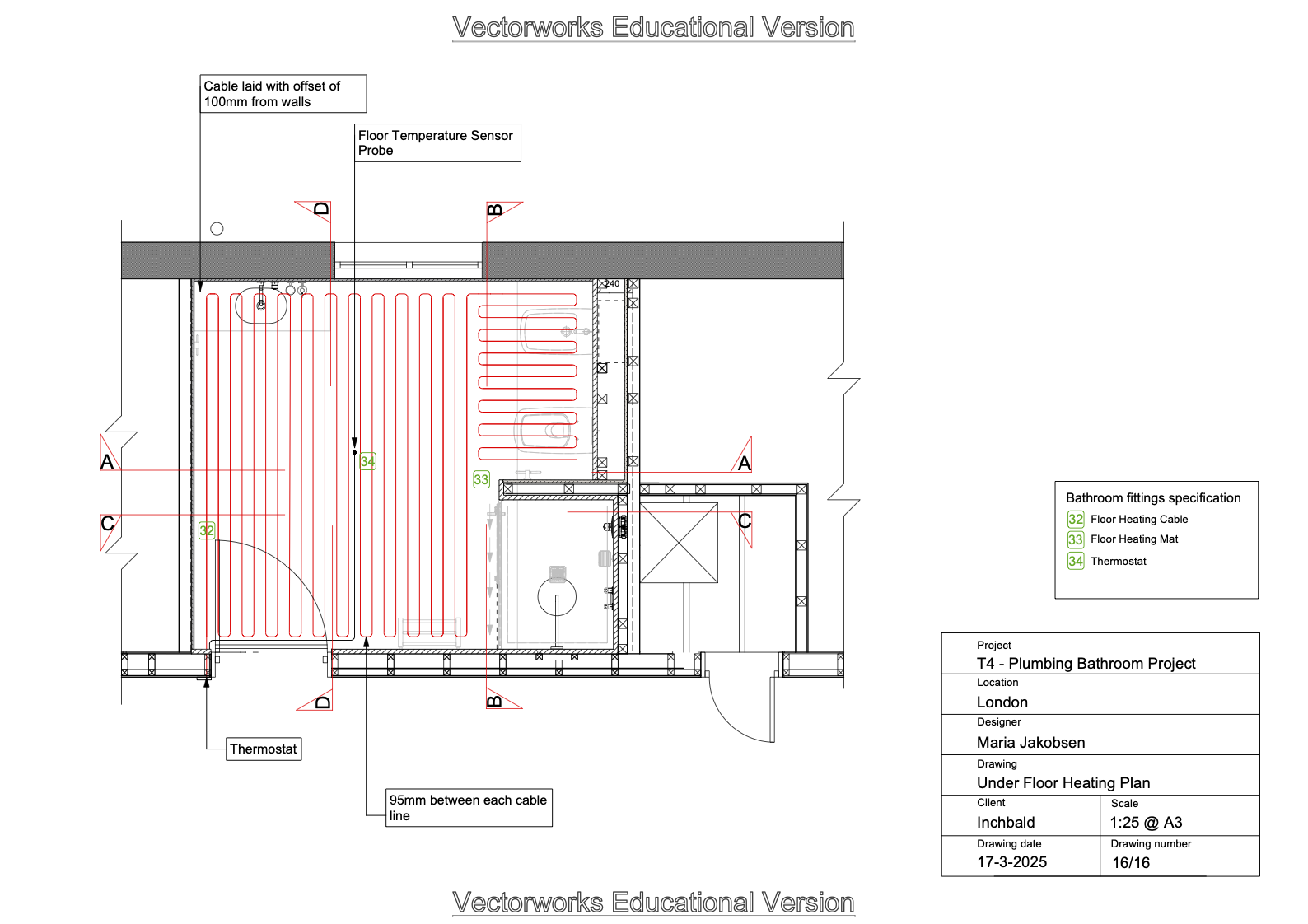

16 Plan Heat.png
